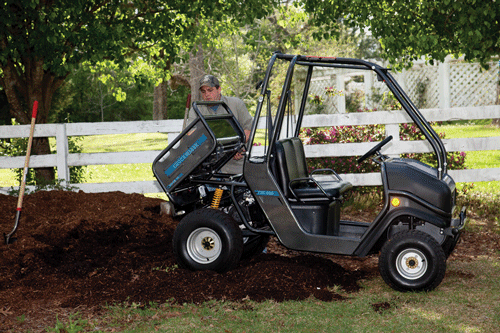

| CW200 | |
| Model | CW200 |
| Engine Type | 4-Stroke OHC Single Cylinder |
| Engine Size | 9.0HP @ 7500 RPM |
| Speed | 28-30mph |
| Fuel Consumption | 45mpg |
| Range | 78 miles |
| Starting/Battery | Electric keyed ignition, 12V/9 Amp hours |
| Backup-Recoil Start | No |
| Spark Plug | NGK C7HSA |
| Fuel Capacity | 1.6 gal |
| Alternator | 7 amp |
| Low Oil Shut Down | No |
| Transmission | CVT |
| Transaxle | F-N-R Oil Filled Internal |
| Differential | 7.421 pt |
| Drive | 2 Wheel Drive |
| Front Suspension | Double A-Arms, Adjustable Shocks |
| Rear Suspension | Multi Link Swing Arm with Twin Adjustable Shock |
| Brakes | Hydraulic Disc Front, Hydraulic Drum Rear |
| Front Tires | 20" x 7" x 8" |
| Rear Tires | 22" x 11" x 10" |
| Special Features | Dual 3pt Lap/Shoulder Belts, 12V Auxiliary Outlet for Accessories, Dump Bed, Garden Tool Holders, Lockable Under Seat Storage, Rear View Mirror, Cup Holders, Spin On Oil Filter, Headlights, Tail Light, Cargo Light |
| Dimensions | 91.5" x 49" x 69.5" |
| Wheel Base | 62.5" |
| Turning Radius | 7.5' - Inside Radius |
| Dry Weight | 690 lbs. |
| Shipping Weight | 820 lbs. |
| Bed Dimensions | Steel, 22"L x 40.5"W x 9"D |
| Bed Capacity | 4.5 cu. ft./250 lbs. |
| Towing Capacity | 500 lbs. |
| Vehicle Capacity | 750 lbs. |
| Parking Brakes | Hand Operated |
| Head Rest | No |
| Under Seat Storage | Yes |
| Warranty | 1 year |
| WARNING! UTVs can be hazardous to operate. Failure to understand and follow Warnings and Instructions for the safe use and maintenance of this product may result in Death or Injury! For your safety: Always use seatbelts. For off-road use only. Sharp turns or abrupt maneuvers at high speeds may cause the vehicle to go out of control. Children may not have the skills or experience needed to safely operate a UTV. It is recommended that drivers possess a valid driver's license. Understand and follow all warning labels on the vehicle and in the Operator's Manual | |
| WARRANTY INFORMATION • Engine (SEE ABOVE). • 1 Year: All Other Components. General Exclusions: Warranty does not cover failures caused by: accident or collision damage; abnormal strain, neglect, or abuse; improper assembly of parts included in the shipping crate; improper maintenance or use, such as: competition or racing. Specific Exclusions: This warranty does not apply to normal wear items, including but not limited to: tires, brake lining, throttle cable, belts, seat, fasteners, or decals. See operator's manual for detailed warranty information. Color, graphics and/or specifications subject to change without notice. | |
