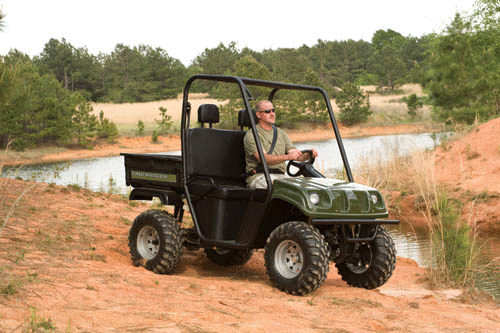

| CW650 | |
| Model | CW650 |
| Engine Type | 4-Stroke OHV V-Twin |
| Engine Size | 653cc Subaru |
| Speed | 20-22 mph |
| Fuel Consumption | 18mpg |
| Range | 90 miles |
| Starting/Battery | Electric keyed ignition / 360 cca |
| Backup-Recoil Start | No |
| Spark Plug | NGK BPR4EY |
| Fuel Capacity | 5.0 gal |
| Alternator | 30 Amp |
| Low Oil Shut Down | Oil Pressure Warning Light |
| Transmission | CVT |
| Transaxle | Oil Filled Dana Gearbox |
| Differential | Locking Shift on the fly |
| Drive | Switch Engaged On Demand, 4 Wheel Drive |
| Front Suspension | 4-Link double A-Arm, up to 5" Travel |
| Rear Suspension | Articulated Rear Swing Arm, Quad Adjustable Shocks, with 3" Travel |
| Brakes | Hydraulic Disc Front, Hydraulic Drum Rear |
| Front Tires | 25" X 12" X 10" |
| Rear Tires | 25" X 12" X 10" |
| Special Features | 3pt Lap/Shoulder Belts for Driver and Passenger, 35W Headlights, Polyurethane Powder Paint, 2" Rear Receiver Hitch, Dump Bed, Bench Seating, Welded steel frame |
| Dimensions | 103" X 48" X 75" |
| Wheel Base | 71" |
| Turning Radius | 9.5 |
| Dry Weight | 1000 lbs. |
| Shipping Weight | 1250 lbs. |
| Bed Dimensions | Structural Foam - "Poly Bed" w/ stake pocket, 36"L X 41"W X 11"D |
| Bed Capacity | 9.25 cu.ft. / 400 lbs. |
| Towing Capacity | 1100 lbs. |
| Vehicle Capacity | 1000 lbs. |
| Parking Brakes | Hand Operated |
| Head Rest | Yes |
| Under Seat Storage | No |
| Warranty | Engine: 3 years |
| All other components: 1 Year | |
| WARNING! UTVs can be hazardous to operate. Failure to understand and follow Warnings and Instructions for the safe use and maintenance of this product may result in Death or Injury! For your safety: Always use seatbelts. For off-road use only. Sharp turns or abrupt maneuvers at high speeds may cause the vehicle to go out of control. Children may not have the skills or experience needed to safely operate a UTV. It is recommended that drivers possess a valid driver's license. Understand and follow all warning labels on the vehicle and in the Operator's Manual | |
| WARRANTY INFORMATION • Engine (SEE ABOVE). • 1 Year: All Other Components. General Exclusions: Warranty does not cover failures caused by: accident or collision damage; abnormal strain, neglect, or abuse; improper assembly of parts included in the shipping crate; improper maintenance or use, such as: competition or racing. Specific Exclusions: This warranty does not apply to normal wear items, including but not limited to: tires, brake lining, throttle cable, belts, seat, fasteners, or decals. See operator's manual for detailed warranty information. Color, graphics and/or specifications subject to change without notice. | |
