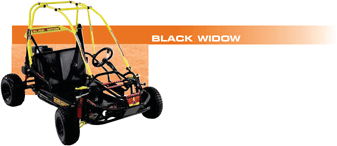

| Model Number | Black Widow |
| Ages | 13+ |
| Speed | 22-24 mph |
| Engine Type | Air cooled, 4 cycle |
| Engine Size | Single cylinder 136cc |
| Power | 4.1B HP @ 3600 RPM |
| Torque | 7.1 ft-lbs @ 3185 RPM |
| Starting System | Pull Recoil with Manual Choke |
| Air Filtration | Dual Element |
| Exhaust System | Muffler with Heat Shield |
| Fuel Capacity | .71 gal |
| Oil Capacity | 17 oz |
| Spark Plug | F6RTC |
| Transmission Type | Dual Wheel Drive, CVT |
| Drive | N/A |
| Brakes | Rear, Single Hydraulic Disc |
| Tires (Front) | 145/70 - 6 16" x 8" x 7" |
| Tires (Rear) | 145/70 - 6 16" x 8" x 7" |
| Special Features | Bench Foam Padded Seat, 3-Point Shoulder/Lap Belts w/Retractor, Engine Stop Switch on Engine and in Dash, 1" Full Brush Bars, Whip Flag, Pedal Latch Style Parking Brake |
| Dimensions | 71"L x 47"W x 49"H |
| Wheel Base | 47.5" |
| Seat to Pedals | 33" - 37" |
| Curb Weight | 300 lbs |
| Max. Rider Weight | 400 lbs |
| Gross Vehicle Weight | 568 lbs |
| Shipping Weight | N/A |
| Warranty | 3 years: Engine Warranty by LCT |
| 90 days: Frame, Brush Bars, Spindles, Seat Frame | |
| 90 days: All other components | |
| WARNING! Go karts can be hazardous to operate. Failure to understand and follow Warnings and Instructions for the safe use and maintenance of this product may result in Death or Injury! For your safety: Always use seatbelts, wear an approved helmet, eye protection and protective clothing. Restrain hair at or above shoulder level and secure any loose clothing that could reach behind or under the seat. Avoid stationary objects and obstacles that create the potential for collision. Never engage in stunt riding, jumping, or operate the kart under the influence of drugs or alcohol. For off road use only! Competent adult supervision recommended when children are operating the vehicle. Read Operator's Manual and watch Safety Video. | |
| WARRANTY INFORMATION • Engine (SEE ABOVE). • 90 days: Frame, Brush Bars, Spindles, Seat
Frame. • 30 days: All Other Components. General Exclusions: Warranty does not cover failures caused by: accident or collision damage; abnormal strain, neglect, or abuse; improper assembly of parts included in the factory sealed carton; improper maintenance or use, such as: competition or racing, concession or rental. Specific Exclusions: This warranty does not apply to normal wear items, including but not limited to: tires, centrifugal clutch, brake lining, throttle cable, chain, belts, seat, fasteners, or decals. See operator's manual for detailed warranty information. Color, graphics and/or specifications subject to change without notice. Vehicles not for race/rental track use. | |
