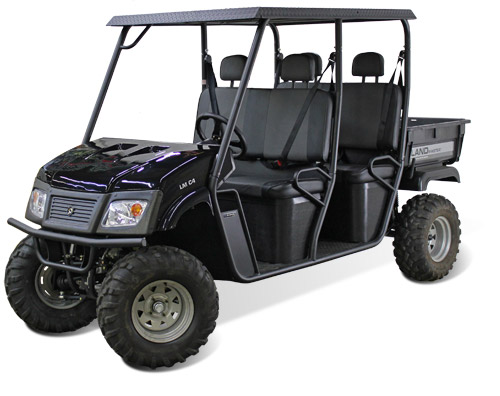

Rugged, durable 4WD LANDmaster Crew with performance power!
* Subaru OHV 4-stroke V-twin engine with five year warranty
* 653cc with 33.6 ft. lbs. of torque at 2500 RPM
* 4 wheel hydraulic brakes
* Double A-Arm front suspension
* Articulated rear swing arm suspension with quad adjustable shocks
* Low oil pressure warning light
* 25” tires for 14” ground clearance (8” to gearbox)
* Oil filled Dana-Spicer Trans Axle with Locking Differential
* 1200 lb. towing capacity
* Available in red, green, white*, black* or camo*
* white, black or camo available at additional cost
- Motor Type
- Motor Size
- Speed
- Fuel Consumption
- Range
- Starting
- Battery
- Backup-Recoil Start
- Spark Plug
- Fuel Capacity
- Alternator
- Low Oil Shutdown
- Transmission
4-Stroke OHV V-Twin
653cc Subaru
Up to 24 MPH
Up to 18 MPG
Up to 90 Miles
12V Electric Ignition
360 cca
No
NGK BPR4EY
5.0 Gallons
30 amp
Oil Pressure Warning Light
CVT Automatic
- Transaxle
- Differential
- Drive
- Front Suspension
- Rear Suspension
- Brake System
- Front Tires
- Rear Tires
- Special Features
- Dimensions
- Wheel Base
- Turning Radius
- Dry Weight
Gear Drive Dana-Spicer Oil-Filled Transaxle
Locking
Switch Engaged On Demand, 4 Wheel Drive
Double A-Arm Front with up to 3” Travel
Articulated Rear Swing Arm, Quad Adj. with 3” Travel
4 Wheel Hydraulic Disc Front, Hydraulic Drum Rear
25” x 11” x 12”
25” x 11” x 12”
3pt Lap/Shoulder Belts front and rear seats for Driver and Passengers, 35W Headlights, Polyurethane Powder Paint, 2” Rear Receiver Hitch, Dump Bed, Bench Seating, Welded steel frame
143” L x 48” W x 75” D
104"
147" - Inside Radius
1400 Lbs.
- Shipping Weight
- Bed Material
- Bed Dimensions
- Bed Capacity
- Rear Flip Seat
- Towing Capacity
- Vehicle Capacity
- Parking Brake
- Headrests
- Under Seat Storage
- Warranty
1400 Lbs.
Structural Foam – “Poly Bed” w/ stake pockets
35.25” L x 41.5” W x 11” D
9.25 cu.ft. / 400 lbs.
Available when ordered as an "S" model
1200 Lbs.
1500 Lbs.
Hand Operated
Yes (Front and Rear Seats)
Yes (Front and Rear Seats)
5 year engine: All other components 1 year
|
