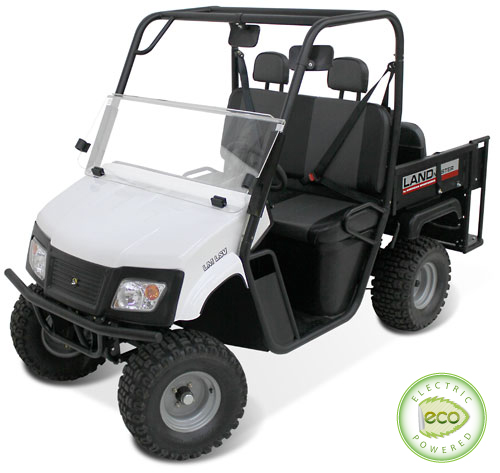

Electric, quiet and powerful! The LM-LSV is even street legal!
• 48 Volt high efficiency motor for reliable power
• 6 - 8 Volt Trojan Batteries
• Sealed solid state Delta-Q charger on board with dash mounted charge meter
• 500 amp Curtis controller for efficient power distribution
• Dual mode switch for speed control or extended range
• Regenerative braking on the motor to facilitate deceleration and help recharge the batteries
• 2 inch rear receiver hitch
• Available in red, green, white*, black* or camo*
* white, black or camo available at additional cost
- Motor Type
- Motor Size
- Speed
- Fuel Consumption
- Range
- Starting
- Battery
- Backup-Recoil Start
- Spark Plug
- Fuel Capacity
- Alternator
- Low Oil Shutdown
- Transmission
48V DC
24kw at 70 ft. lbs of torque w/ 500 amp Curtis Controller
Up to 22 mph (Up to 10 mph in M2)
N/A
Up to 38 miles (in M2)
Keyed Ignition
6 - 8 volt Trojan T-875 Deep Cycle Batteries
N/A
N/A
N/A
Converter/20 amps
N/A
Direct Drive
- Transaxle
- Differential
- Drive
- Front Suspension
- Rear Suspension
- Brake System
- Front Tires
- Rear Tires
- Special Features
- Dimensions
- Wheel Base
- Turning Radius
- Dry Weight
H-12 DANA Gearbox
Open Differential
2 Wheel Drive
Double A-Arms, Adjustable Shocks with 3” Travel
Articulated Rear Swing Arm, Quad Adj. Shocks with 3” Travel
6.25” Dual Rear Drum, With Regenerative Braking
22” x 11” x 10”
22” x 11” x 10”
Currently listed with NHTSA, Meets FMVSS 500 specifications, Turn Signals, Horn, Polycarbonate Shatter Resistant Windshield, On-board Charger, 3pt lap shoulder seatbelts for Driver and Passenger, 35W Headlights, Brake Lights, 2” Rear Receiver Hitch, Welded steel frame
102.5” L x 47” W x 74” D
71"
7.5' - Inside Radius
1250 Lbs.
- Shipping Weight
- Bed Material
- Bed Dimensions
- Bed Capacity
- Rear Flip Seat
- Towing Capacity
- Vehicle Capacity
- Parking Brake
- Headrests
- Under Seat Storage
- Warranty
1330 Lbs.
Structural Foam – “Poly Bed” w/ stake pockets
35.25” L x 41.5” W x 11” D
9.25 cu.ft. / 400 lbs.
Available when ordered as an "S" model
1100 Lbs.
900 Lbs.
Hand Operated
Yes
Yes
1 year
|
