American SportWorks LANDmaster LM200 Gasoline Powered Light UTV

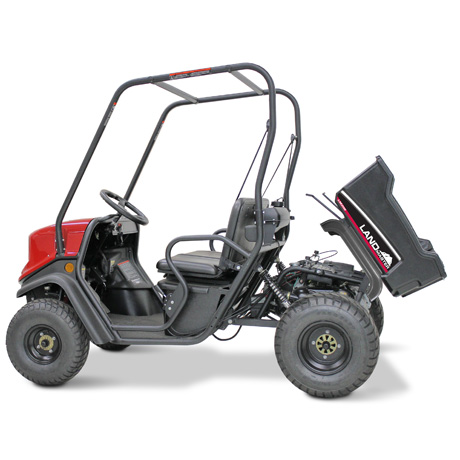

Landmaster LM200 from American SportWorks

Powerful and fun light utility vehicle capable of handling just about any chore that needs done!

The LM202 LUTV is a lighter duty, 2 wheel drive utility vehicle that’s perfect for keeping your yard and gardens neat and tidy. This sporty runabout will make your chores fast and fun.

Top speed of up to 30 mph with an automatic CVT with Forward/Neutral/Reverse

Heavy duty coil over shocks on all four wheels smooth out the bumps

Rack and pinion steering and 4 wheel hydraulic brakes for control

250 lb rear manual dump bed and a 500 lb towing capacity

Storage compartment under the seat plus cup holders, 12V auxiliary outlet, head-lights and rear fenders

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

Reference to estimated monthly payment is based on financing of 7.9% for 48 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Financing is subject to credit approval. Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

** Not all LANDmaster dealers have the ability to provide installment financing.

LM202 SPECIFICATIONS

MOTOR	150cc 4-Stroke OHC Single Cylinder	DRIVE	2 Wheel drive	BED DIMENSIONS	21.5" L x 40.5" W x 9" D
	150cc 4-Stroke OHC Single Cylinder	FRONT SUSPENSION	Double A-arms with coli-over shocks	BED CAPACITY	4.5 cu. ft./250 lbs.
SPEED	Up to 30 MPH*		Double A-arms with coli-over shocks	REAR FLIP SEAT	Not available for this unit
FUEL CONSUMPTION	Up to 45 MPG*	REAR SUSPENSION	Multi link swing arm with twin adjustable shocks	TOWING CAPACITY	500 Lbs.
RANGE	Up to 72 Miles*		Multi link swing arm with twin adjustable shocks	VEHICLE CAPACITY	750 Lbs.
STARTING	12V Electric keyed ignition	BRAKE SYSTEM	4 Wheel hydraulic disc front and rear	PARKING BRAKE	Hand operated
BATTERY	12v / 90cca powersport class		4 Wheel hydraulic disc front and rear	HEADRESTS	No
BACKUP-RECOIL START	No	FRONT TIRES	20 x 7 - 8	UNDER SEAT STORAGE	Yes
SPARK PLUG	NGK C7HSA	REAR TIRES	22 x 10 - 10	WARRANTY	1 Year limited from ASW
FUEL CAPACITY	1.75 Gallons	DIMENSIONS	91.5” L x 49” W x69.5” H	SPECIAL FEATURES	Dual 3pt lap/shoulder belts,12V auxiliary outlet for accessories, dump bed, cup holders and headlights
ALTERNATOR	7 Amp	WHEEL BASE	62.5"
LOW OIL SHUTDOWN	No	TURNING RADIUS	7.5' - Inside radius
TRANSMISSION	CVT automatic	DRY WEIGHT	615 Lbs.
DIFFERENTIAL	N/A	SHIPPING WEIGHT	729 Lbs.
TRANSAXLE	F-N-R oil filled internal	BED MATERIAL	Twin sheet thermoformed plastic

*Specifications are subject to change without notice. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
