American SportWorks LANDmaster LMC4H 2WD/4WD Hybrid Gas/Electric Powered Crew Cab UTV

Landmaster LMC4H from American SportWorks

You no longer have to choose between a gas or electric UTV. Get both with the Hybrid!

653cc gasoline engine and 24KW/48V electric motor

Gasoline engine operation powers vehicle for longer range or when you need more power

Electric motor operation powers vehicle for short distances when you want to be totally silent you can run exclusively on the batteries

4-wheel drive operation powers vehicle with both the electric motor and the gasoline engine simultaneously

4-wheel brakes: disc front and drum rear with regenerative braking

1200 lb. towing capacity

Available in red, green, white*, black*or camo*

Total range of up to 130 miles (see estimate chart)

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

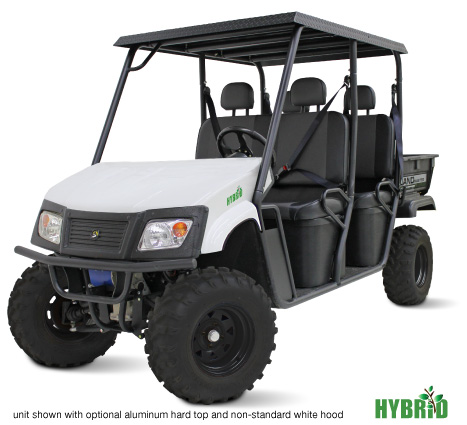

Unit shown includes optional accessories
– MSRP as shown is $12797.99

** Not all LANDmaster dealers have the ability to provide Sheffield financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	48V DC / 4-stroke OHV V-twin	LOW OIL SHUTDOWN	N/A - Oil pressure warning light	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets
	48V DC / 4-stroke OHV V-twin	TRANSMISSION	Direct drive / CVT automatic		Structural foam – “Poly Bed” with stake pockets
MOTOR SIZE	24kw at 46 ft. lbs of torque with 500 amp Curtis controller / 653cc Subaru	DIFFERENTIAL	Manual lock differential	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
		TRANSAXLE	H-12 Shafer/DANA gearbox (front) Gear drive Shafer/Dana-Spicer oil-filled transaxle	BED CAPACITY	9.25 cu.ft. / 400 lbs.
				REAR FLIP SEAT	Not an available option
SPEED	Up to 22 MPG**			TOWING CAPACITY	1200 Lbs.
FUEL CONSUMPTION	Up to 18 MPG**	DRIVE	Switch Engaged On Demand, 4 Wheel Drive	VEHICLE CAPACITY	1500 Lbs.
RANGE	ELECTRIC:up to 10 miles GAS:up to 90 miles		Switch Engaged On Demand, 4 Wheel Drive	PARKING BRAKE	Hand operated
	ELECTRIC:up to 10 miles GAS:up to 90 miles	FRONT SUSPENSION	Double A-arm front with up to 3” travel, coil over gas reservoir shock absorbers	HEADRESTS	Yes (front & rear seats)
STARTING	Keyed on/off switch(48V motor) 12V keyed ignition (gas engine)			UNDER SEAT STORAGE	Yes (front & rear seats)
		REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks with up to 3” travel	WARRANTY	Engine: 5 year by SUBARU All other components: 1 year by ASW
BATTERY	4 -12V US Battery 155 Amp Hour Deep Cycle Batteries / 12V Starting - 360 cca

		BRAKE SYSTEM	4 Wheel Hydraulic Disc Front, Hydraulic Drum Rear	SPECIAL FEATURES	3pt lap/shoulder belts front and rear seats for driver and passengers, 35W headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, 12V auxiliary outlet for accessories
ON-BOARD CHARGER	Delta Q, 48V, sealed, solid state, UL and CE compliant		4 Wheel Hydraulic Disc Front, Hydraulic Drum Rear
	Delta Q, 48V, sealed, solid state, UL and CE compliant	FRONT/REAR TIRES	25 x 11 - 12” heavy duty 6 ply
SPARK PLUG	NGK BPR4ES	DIMENSIONS	143” L x 48” W x 75” D
FUEL CAPACITY	5.0 gallons	WHEEL BASE	104"
ALTERNATOR	Converter 20 amps / 30 amp	TURNING RADIUS	19.5’ inside radius
		DRY WEIGHT	1557 Lbs.
		SHIPPING WEIGHT	1557 Lbs. (ships uncrated)

Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
