4-stroke 653cc OHV V-twin Subaru engine with five year warranty
Convenient 12V electric start with recoil back-up
4-link double A-arm front suspension with adjustable shocks
Articulated rear swing arm suspension with quad adjustable shocks – 3” travel
Adjustable coil over shocks
500 lb. capacity, 9.25 cu. ft. dump bed
2 inch rear receiver hitch
1200 lb. towing capacity
Both models available in red, green, white*, black* or camo*
The LM700 Advantages
Independent Rear Suspension
Auto Locking Rear Differential
4 Wheel Disc Brakes
* white, black or camo available at additional cost
Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.
MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.
Reference to estimated monthly payment is based on financing of 8.9% for 60 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.
Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

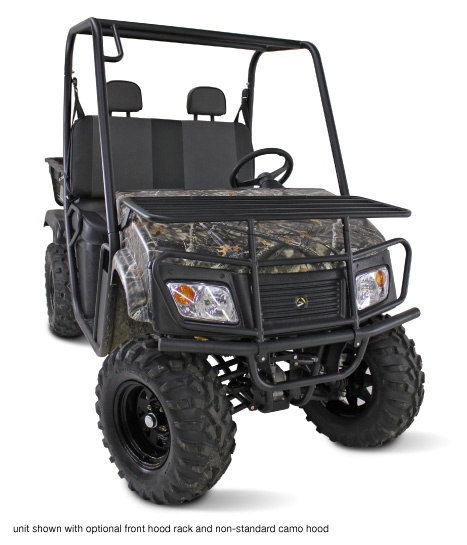

Unit shown includes optional accessories
– MSRP as shown for LM650 is $7497.99
– MSRP as shown for LM700 is $7997.99
** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.
| MOTOR TYPE | 4-Stroke OHV V-Twin | FRONT SUSPENSION | 4-Link Double A-Arm with up to 5” Travel |
BED DIMENSIONS | 35.25” L x 41.5” W x 11” D |
| MOTOR SIZE | 653cc Subaru | BED CAPACITY | 9.25 cu.ft. / 500 lbs. | ||
| SPEED | Up to 24 mph | REAR SUSPENSION | 650:Articulated rear swingarm, quad adjustable shocks with 3” of travel 700:Double A-arm fully independent with up to 5” Travel |
REAR FLIP SEAT | Available when ordered as an "S" model |
| FUEL CONSUMPTION | Up to 18 mph | ||||
| RANGE | Up to 90 miles | TOWING CAPACITY | 1200 lbs. | ||
| STARTING | 12V electric ignition | VEHICLE CAPACITY | 1000 lbs. | ||
| BATTERY | 360 cca | PARKING BRAKE | Hand operated | ||
| BACKUP-RECOIL START | No | HEADRESTS | Yes | ||
| SPARK PLUG | NGK BPR4EY | BRAKE SYSTEM | 650:Hydraulic disc front, hydraulic drum rear 700:4 Wheel hydraulic disc front and rear |
UNDER SEAT STORAGE | yes |
| FUEL CAPACITY | 5.0 gallons | WARRANTY | Engine: 5 year by SUBARU All other components: 1 Year by ASW |
||
| ALTERNATOR | 30 amp | ||||
| LOW OIL SHUTDOWN | Oil pressure warning light | ||||
| TRANSMISSION | CVT automatic | FRONT/REAR TIRES | 25" x 11" x 12" | SPECIAL FEATURES | 3pt lap/shoulder belts for driver and passenger, 35W headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, 12V auxiliary outlet for accessories |
| DIFFERENTIAL | 650:Locking 700:Hilliard auto locking |
DIMENSIONS | 110” L x 48” W x 75” D | ||
| WHEEL BASE | 71" | ||||
| TRANSAXLE | Gear drive Dana-Spicer oil filled transaxle |
TURNING RADIUS | 9.5’ inside radius | ||
| DRY WEIGHT | 1000 lbs. | ||||
| DRIVE | Switch engaged on demand 4 wheel drive |
SHIPPING WEIGHT | 1100 lbs. | ||
| BED MATERIAL | Structural foam “Poly Bed” with stake pockets |
||||
 |
|||||
|
