American SportWorks LANDmaster LM400 Gasoline Powered Light UTV

Landmaster LM400 from American SportWorks

2 Wheel drive with power and endurance for short hauls or all day adventure!

4-stroke 390cc single cylinder OHV Honda engine with three year warranty

Convenient 12V electric start with recoil back-up

Locking differential Double A-Arm front suspension with adjustable shocks

Articulated rear swing arm suspension featuring quad adjustable shocks with up to 3” of travel

Automatic low oil shut off to protect the engine

5 gallon fuel tank for long range treks

2 inch rear receiver hitch 1100 lb. towing capacity

Available in red, green, white*, black* or camo*

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

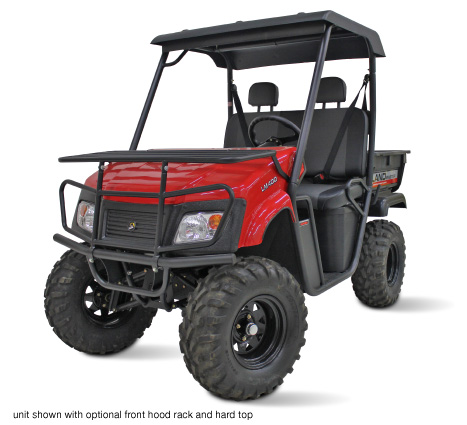

Unit shown includes optional accessories
– MSRP as shown is $5598.98

** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	4-Stroke OHV single cylinder	DRIVE	2 Wheel drive	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
MOTOR SIZE	390cc Honda	FRONT SUSPENSION	Double A-Arms, adjustable shocks, with 3” travel	BED CAPACITY	9.25 cu.ft. / 400 lbs.
SPEED	Up to 22 MPH**		Double A-Arms, adjustable shocks, with 3” travel	REAR FLIP SEAT	Available when ordered as an "S" model
FUEL CONSUMPTION	Up to 20 MPG**	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks, with 3” travel		Available when ordered as an "S" model
RANGE	Up to 100 Miles**			TOWING CAPACITY	1100 Lbs.
STARTING	Keyed ignition with recoil backup			VEHICLE CAPACITY	900 Lbs.
BATTERY	12V 360 cca utility class	BRAKE SYSTEM	6.25” Dual rear drum	PARKING BRAKE	Hand Operated
BACKUP-RECOIL START	Yes	FRONT TIRES	25 x 11 - 12"	HEADRESTS	Yes
SPARK PLUG	NGK BPR6ES	REAR TIRES	25 x 11 - 12"	UNDER SEAT STORAGE	Yes
FUEL CAPACITY	5.0 Gallons	DIMENSIONS	106” L x 47” W x 74” D	WARRANTY	Engine: 3 year by HONDA All other components: 1 year by ASW
ALTERNATOR	10 Amp	WHEEL BASE	71"
LOW OIL SHUTDOWN	Yes	TURNING RADIUS	7.5' - Inside radius
TRANSMISSION	CVT Automatic	DRY WEIGHT	824 Lbs.	SPECIAL FEATURES	3pt Lap/shoulder belts for driver and passenger, 12V auxiliary outlet for accessories, 35W headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame
DIFFERENTIAL	Locking	SHIPPING WEIGHT	988 Lbs.
TRANSAXLE	Gear drive Dana-Spicer oil-filled transaxle	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets
	Gear drive Dana-Spicer oil-filled transaxle		Structural foam – “Poly Bed” with stake pockets


Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
