48 Volt high efficiency motor for reliable power
6 - 8 Volt Trojan Deep Cycle Batteries
Sealed solid state Delta-Q charger on board with dash mounted charge meter
500 amp Curtis controller for efficient power distribution
Dual mode switch for speed control or extended range
Regenerative braking on the motor to facilitate deceleration and help recharge the batteries
2 inch rear receiver hitch
Available in red, green, white*, black*or camo*
* white, black or camo available at additional cost
Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.
MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.
Reference to estimated monthly payment is based on financing of 8.9% for 60 months on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.
Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

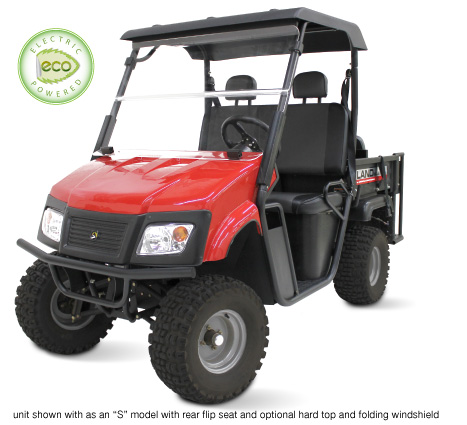

Unit shown includes optional accessories
– MSRP as shown is $7298.98
** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.
| MOTOR TYPE | 48V DC | DIFFERENTIAL | Open differential | BED MATERIAL | Structural foam – “Poly Bed” with stake pockets |
| MOTOR SIZE | 24kw at 46 ft. lbs of torque with 500 amp Curtis controller | TRANSAXLE | H-12 DANA gearbox | ||
| DRIVE | 2 Wheel drive | BED DIMENSIONS | 35.25” L x 41.5” W x 11” D | ||
| SPEED | Up to 22 MPH (up to 10 mph in M2) |
FRONT SUSPENSION |
Double A-arm front with up to 3” travel |
BED CAPACITY | 9.25 cu.ft. / 400 lbs. |
| REAR FLIP SEAT | Available when ordered as an "S" model | ||||
| FUEL CONSUMPTION | N/A | REAR SUSPENSION | Articulated rear swing arm, quad adjustable shocks with 3” travel |
||
| RANGE | Up to 38 miles (in M2) | TOWING CAPACITY | 1100 Lbs. | ||
| STARTING | Keyed ignition | VEHICLE CAPACITY | 900 Lbs. | ||
| BATTERY | 6 - 8 volt Trojan T-875 Deep Cycle Batteries |
BRAKE SYSTEM | 6.25” Dual rear drum, with regenerative braking |
PARKING BRAKE | Hand Operated |
| HEADRESTS | Yes | ||||
| ON-BOARD CHARGER | Delta Q, 48V, sealed, solid state, UL and CE compliant |
FRONT/REAR TIRES | 22” x 11” x 10” | UNDER SEAT STORAGE | Yes |
| DIMENSIONS | 110” L x 47” W x 74” D | WARRANTY | 1 Year by ASW | ||
| SPARK PLUG | N/A | WHEEL BASE | 71" | SPECIAL FEATURES | 3pt lap/shoulder belts for driver and passenger, 35W headlights, on-board charger, 2” rear receiver Hitch, welded steel frame, 12V auxiliary outlet for accessories |
| FUEL CAPACITY | N/A | TURNING RADIUS | 7.5’ inside radius | ||
| ALTERNATOR | Converter 20 amps | DRY WEIGHT | 1250 lbs. | ||
| LOW OIL SHUTDOWN | N/A | SHIPPING WEIGHT | 1330 lbs. | ||
| TRANSMISSION | Direct drive | ||||
 |
|||||
|
