American SportWorks LANDmaster LM650H Gas/Electric Hybrid Powered UTV

Landmaster LM650H from American SportWorks

Compromise is no longer necessary. Get a Gas powered AND Electric powered UTV all in one!

Powered by 653cc gasoline engine and 24KW/48V electric motor

Gasoline engine operation powers vehicle for longer range or when you need more power

Electric motor operation powers vehicle for short distances when you want to be totally silent you can run exclusively on the batteries

4-wheel drive operation powers vehicle with both the electric motor and the gasoline engine simultaneously

4-wheel brakes: disc front and drum rear with regenerative braking

1200 lb. towing capacity

Available in red, green, white*, black*or camo*

Total range of up to 112 miles (see estimate chart)

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

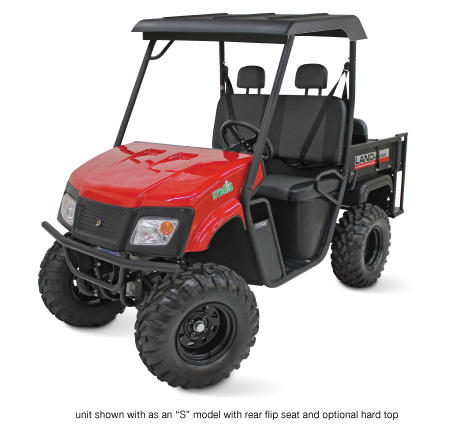

Unit shown includes optional accessories
– MSRP as shown is $10698.99

** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	48V DC / 4-stroke OHV V-twin	TRANSMISSION	Direct drive / CVT automatic	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets
	48V DC / 4-stroke OHV V-twin	DIFFERENTIAL	Manual lock differential		Structural foam – “Poly Bed” with stake pockets
MOTOR SIZE	24kw at 46 ft. lbs of torque with 500 amp Curtis controller / 653cc Subaru	TRANSAXLE	H-12 DANA gearbox / gear drive Dana-Spicer oil-filled transaxle	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
				BED CAPACITY	9.25 cu.ft. / 500 lbs.
				REAR FLIP SEAT	Available when ordered as an "S" model
SPEED	Up to 22 MPH**	DRIVE	2 Wheel drive / switch engaged on demand, 4-wheel drive		Available when ordered as an "S" model
FUEL CONSUMPTION	Up to 18 MPG**			TOWING CAPACITY	1200 Lbs.
RANGE	ELECTRIC:up to 5.5 miles GAS:up to 90 miles			VEHICLE CAPACITY	1000 Lbs.
	ELECTRIC:up to 5.5 miles GAS:up to 90 miles	FRONT SUSPENSION	Double A-arm front with up to 3” travel	PARKING BRAKE	Hand Operated
STARTING	Keyed ignition (electric motor) 12V electric keyed ignition		Double A-arm front with up to 3” travel	HEADRESTS	Yes
	Keyed ignition (electric motor) 12V electric keyed ignition	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks with 3” travel	UNDER SEAT STORAGE	Yes
BATTERY	4 -12V AGM sealed Deep Cycle batteries / 12V starting - 360 cca			WARRANTY	Engine: 5 year by SUBARU All other components: 1 Year by ASW

		BRAKE SYSTEM	Hydraulic Disc Front, Hydraulic Drum Rear
ON-BOARD CHARGER	Delta Q, 48V, sealed, solid state, UL and CE compliant		Hydraulic Disc Front, Hydraulic Drum Rear	SPECIAL FEATURES	3pt Lap/Shoulder Belts for Driver and Passenger, 35W Headlights, Polyurethane Powdered Coat Paint, 2” Rear Receiver Hitch, Dump Bed, Bench Seating, Welded Steel Frame
	Delta Q, 48V, sealed, solid state, UL and CE compliant	FRONT/REAR TIRES	25 x 11 - 12”
SPARK PLUG	NGK BPR4ES	DIMENSIONS	106” L x 48” W x 75” D
FUEL CAPACITY	5.0 gallons	WHEEL BASE	71"
ALTERNATOR	Converter 20 amps / 30 amp	TURNING RADIUS	9.5’ inside radius
LOW OIL SHUTDOWN	Oil pressure warning light	DRY WEIGHT	1100 lbs.
		SHIPPING WEIGHT	1250 lbs.

Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
