American SportWorks LANDmaster LMLSV Electic Powered UTV

Landmaster LMLSV from American SportWorks

Electric, quiet and powerful! The LMLSV is even street legal!

48 Volt high efficiency motor for reliable power

Six 8 Volt Trojan Deep Cycle Batteries

Sealed solid state Delta-Q charger on board with dash mounted charge meter

500 amp Curtis controller for efficient power distribution

Dual mode switch for speed control or extended range

Regenerative braking on the motor to facilitate deceleration and help recharge the batteries

2 inch rear receiver hitch

Available in red, green, white*, black*or camo*

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

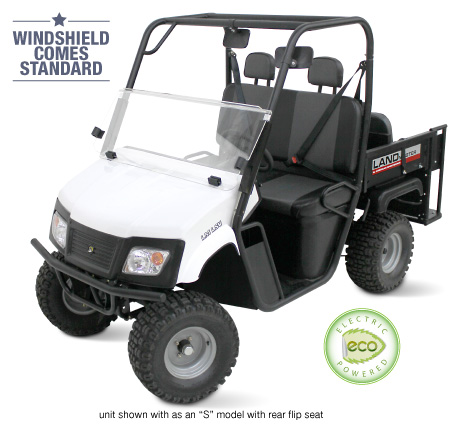

Unit shown includes optional accessories
– MSRP as shown is $7499.00

** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	48V DC	TRANSAXLE	H-12 Shafer/DANA gearbox	BED CAPACITY	9.25 cu.ft. / 400 lbs.
MOTOR SIZE	24kw at 70 ft. lbs of torque with 500 amp Curtis controller	DRIVE	2 Wheel drive	REAR FLIP SEAT	Available when ordered as an "S" model
	24kw at 70 ft. lbs of torque with 500 amp Curtis controller	FRONT SUSPENSION	Double A-arm front, adjustable shocks with up to 3” travel		Available when ordered as an "S" model
SPEED	Up to 22 MPH (up to 10 mph in M2)		Double A-arm front, adjustable shocks with up to 3” travel	TOWING CAPACITY	1100 Lbs.
	Up to 22 MPH (up to 10 mph in M2)	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks with up to 3” travel	VEHICLE CAPACITY	900 Lbs.
FUEL CONSUMPTION	N/A			PARKING BRAKE	Hand Operated
RANGE	Up to 38 miles (in M2)**			HEADRESTS	Yes
STARTING	Keyed ignition	BRAKE SYSTEM	6.25” Dual rear drum, with regenerative braking	UNDER SEAT STORAGE	Yes
BATTERY	Six 8 volt Trojan T-875 Deep Cycle Batteries		6.25” Dual rear drum, with regenerative braking	WARRANTY	1 Year limited by ASW
	Six 8 volt Trojan T-875 Deep Cycle Batteries	FRONT/REAR TIRES	22 x 11 - 10	SPECIAL FEATURES	3pt lap/shoulder belts for driver and passenger, 35W headlights, on-board charger, 2” rear receiver Hitch, welded steel frame, 12V auxiliary outlet for accessories
ON-BOARD CHARGER	Delta Q, 48V, sealed, solid state, UL and CE compliant	DIMENSIONS	106” L x 47” W x 74” D
	Delta Q, 48V, sealed, solid state, UL and CE compliant	WHEEL BASE	71"
SPARK PLUG	N/A	TURNING RADIUS	7.5’ inside radius
FUEL CAPACITY	N/A	DRY WEIGHT	1250 lbs.
ALTERNATOR	Converter / 20 amps	SHIPPING WEIGHT	1388 lbs.
LOW OIL SHUTDOWN	N/A	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets	LSV ADDITIONAL FEATURES	Listed with NHTSA, meets FMVSS 500 specs, turn signals, horn, polycarbonate shatter resistant windshield
TRANSMISSION	Direct drive		Structural foam – “Poly Bed” with stake pockets
DIFFERENTIAL	Open differential	BED DIMENSIONS	35.25” L x 41.5” W x 11” D

Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
