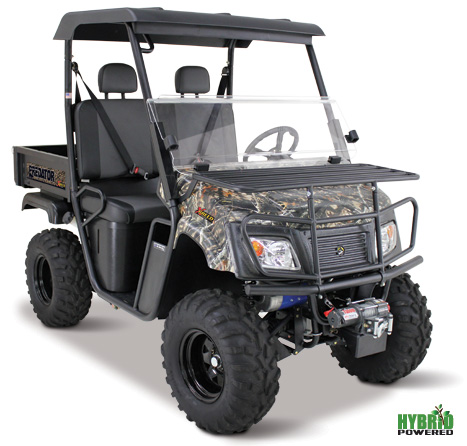

Landmaster LM650P from American SportWorks

A hunter's dream utility vehicle! Silent 2WD or full power 4WD, fully loaded with accessories!

Powered by 653cc gasoline engine and 24KW/48V electric motor

Gasoline engine operation powers vehicle for longer range or when you need more power

Electric motor operation powers vehicle for short distances when you want to be totally silent you can run exclusively on the batteries

4-wheel drive operation powers vehicle with both the electric motor and the gasoline engine simultaneously

4-wheel brakes: disc front and drum rear with regenerative braking

1200 lb. towing capacity

The most popular hunting accessories come standard

Locking differential to help get you through rough terrain

Total range of up to 112 miles (see estimate chart)

Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	ELECTRIC:48V DC GAS:4-stroke OHV V-twin	DIFFERENTIAL	Manual lock differential	BED MATERIAL	Steel with no flipseat
	ELECTRIC:48V DC GAS:4-stroke OHV V-twin	TRANSAXLE	H-12 DANA gearbox / gear drive Dana-Spicer oil-filled transaxle	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
MOTOR SIZE	24kw at 46 ft. lbs of torque with 500 amp Curtis controller / 653cc Subaru			BED CAPACITY	9.25 cu.ft. / 400 lbs.
				REAR FLIP SEAT	Available as an optional accessory (p/n 2-55094)
		DRIVE	2 Wheel drive / switch engaged on demand, 4-wheel drive		Available as an optional accessory (p/n 2-55094)
SPEED	Up to 22 MPH			TOWING CAPACITY	1200 Lbs.
FUEL CONSUMPTION	Up to 18 MPG			VEHICLE CAPACITY	1000 Lbs.
RANGE	ELECTRIC:up to 5.5 miles GAS:up to 90 miles	FRONT SUSPENSION	Double A-arm front with up to 3” travel, coil over gas reservoir shock absorbers	PARKING BRAKE	Hand Operated
	ELECTRIC:up to 5.5 miles GAS:up to 90 miles			HEADRESTS	Yes
STARTING	Keyed ignition (electric motor) 12V electric keyed ignition			UNDER SEAT STORAGE	Yes
	Keyed ignition (electric motor) 12V electric keyed ignition	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks with 3” travel	WARRANTY	Engine: 5 year by SUBARU All other components: 1 Year by ASW
BATTERY	4 -12V AGM sealed Deep Cycle Trojan batteries / 12V starting - 360 cca

		BRAKE SYSTEM	Hydraulic Disc Front, Hydraulic Drum Rear	SPECIAL FEATURES	3pt lap/shoulder belts for driver and passenger, 35W headlights, polyurethane powdered coat paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, 12V auxiliary outlet for accessories
ON-BOARD CHARGER	Delta Q, 48V, sealed, solid state, UL and CE compliant		Hydraulic Disc Front, Hydraulic Drum Rear
	Delta Q, 48V, sealed, solid state, UL and CE compliant	FRONT/REAR TIRES	25” x 11” x 12”
SPARK PLUG	NGK BPR4EY	DIMENSIONS	110” L x 48” W x 75” D
FUEL CAPACITY	5.0 gallons	WHEEL BASE	71"
ALTERNATOR	Converter 20 amps / 30 amp	TURNING RADIUS	7.5’ inside radius
LOW OIL SHUTDOWN	Oil pressure warning light	DRY WEIGHT	1311 lbs.
TRANSMISSION	Direct drive / CVT automatic	SHIPPING WEIGHT	1461 lbs.
				INCLUDED ACCESSORIES	Hard top, windshield, CV guard, skid plate, 2500 Lb. capacity front winch, 2" front receiver, front hood rack
