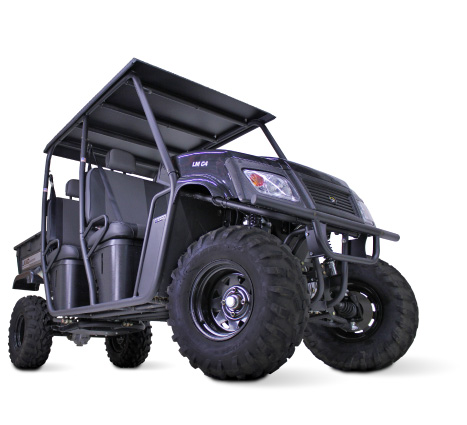

American SportWorks LANDmaster LMC4 4WD Gasoline Powered Crew Cab UTV

Landmaster LMC4 from American SportWorks

Rugged, durable 4WD LANDmaster Crew with performance power!

Subaru OHV 4-stroke V-twin engine with five year warranty

653cc with 33.6 ft. lbs. of torque at 2500 RPM

4 wheel hydraulic brakes

Double A-Arm front suspension

Articulated rear swing arm suspension with quad adjustable shocks

Low oil pressure warning light

25” tires for 14” ground clearance (8” to gearbox)

Oil filled Dana-Spicer Trans Axle with Locking Differential

1200 lb. towing capacity

Available in red, green, white*, black*or camo*

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

** Not all LANDmaster dealers have the ability to provide Sheffield financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	4-Stroke OHV V-twin	DRIVE	Switch engaged on demand 4 Wheel drive	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
MOTOR SIZE	653cc Subaru		Switch engaged on demand 4 Wheel drive	BED CAPACITY	9.25 cu.ft. / 400 lbs.
SPEED	Up to 24 MPH**	FRONT SUSPENSION	Double A-Arm Front with up to 3” Travel	REAR FLIP SEAT	Available when ordered as an "S" model
FUEL CONSUMPTION	Up to 18 MPG**		Double A-Arm Front with up to 3” Travel		Available when ordered as an "S" model
RANGE	Up to 90 miles**	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks, with 3” travel	TOWING CAPACITY	1200 Lbs.
STARTING	12V Electric ignition			VEHICLE CAPACITY	1500 Lbs.
BATTERY	12V / 360 cca utility class			PARKING BRAKE	Hand operated
BACKUP-RECOIL START	No	BRAKE SYSTEM	4 Wheel Hydraulic Disc Front, Hydraulic Drum Rear	HEADRESTS	Yes (front & rear seats)
SPARK PLUG	NGK BPR4ES		4 Wheel Hydraulic Disc Front, Hydraulic Drum Rear	UNDER SEAT STORAGE	Yes (front & rear seats)
FUEL CAPACITY	5.0 Gallons	FRONT/REAR TIRES	25 x 11 - 12”	WARRANTY	Engine: 5 year by SUBARU All other components: 1 year by ASW
ALTERNATOR	30 Amp	DIMENSIONS	143” L x 48” W x 75” D
LOW OIL SHUTDOWN	Oil Pressure Warning Light	WHEEL BASE	104"
TRANSMISSION	CVT automatic	TURNING RADIUS	147" - Inside radius	SPECIAL FEATURES	3pt lap/shoulder belts front and rear seats for driver and passengers, 35W headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, 12V auxiliary outlet for accessories
DIFFERENTIAL	Locking	DRY WEIGHT	1254 Lbs.
TRANSAXLE	Gear drive Dana-Spicer oil-filled transaxle	SHIPPING WEIGHT	1254 Lbs. (ships uncrated)
	Gear drive Dana-Spicer oil-filled transaxle	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets
			Structural foam – “Poly Bed” with stake pockets
Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
