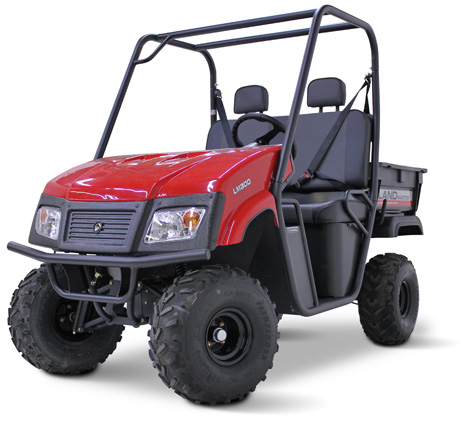

American SportWorks LANDmaster LM300 Gasoline Powered Light UTV

Landmaster LM300 from American SportWorks

Perfect for Chores Around the House, Camp, Farm, Ranch or Exploring Far and Near!

4-stroke 277cc single cylinder KOHLER Command Pro CH395 engine with three year warranty***

Convenient 12V electric start with recoil back-up

Double A-Arm front suspension with adjustable shocks

Articulated rear swing arm suspension featuring quad adjustable shocks with up to 3” of travel

400 lb. capacity, 9.25 cu. ft. dump bed

2 inch rear receiver hitch

1100 lb. towing capacity

Available in red, green, white*, black*or camo*

* white, black or camo available at additional cost

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months with 0% down on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

** Not all LANDmaster dealers have the ability to provide Sheffield financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	4-Stroke OHC single cylinder	DRIVE	2 Wheel drive	BED DIMENSIONS	35.25” L x 41.5” W x 11” D
MOTOR SIZE	265cc Subaru / 277cc Kohler***	FRONT SUSPENSION	Double A-arms,adjustable shocks, with 3” travel	BED CAPACITY	9.25 cu.ft. / 400 lbs.
SPEED	Up to 22 MPH**		Double A-arms,adjustable shocks, with 3” travel	REAR FLIP SEAT	Available when ordered as an "S" model
FUEL CONSUMPTION	Up to 32 MPG**	REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks, with 3” travel		Available when ordered as an "S" model
RANGE	Up to 50 miles**			TOWING CAPACITY	1100 Lbs.
STARTING	Electric keyed ignition			VEHICLE CAPACITY	900 Lbs.
BATTERY	12V / 360 cca utility class	BRAKE SYSTEM	6.25” Dual rear drum	PARKING BRAKE	Hand operated
BACKUP-RECOIL START	Yes	FRONT TIRES	22 x 9 -10"	HEADRESTS	Yes
SPARK PLUG	NGK BKR5E	REAR TIRES	22 x 11-10"	UNDER SEAT STORAGE	No
FUEL CAPACITY	1.6 Gallons	DIMENSIONS	102.5” L x 47” W x 74” D	WARRANTY	Engine: See below**** All other components: 1 year by ASW
ALTERNATOR	10 Amp	WHEEL BASE	71"
LOW OIL SHUTDOWN	No	TURNING RADIUS	7.5' - Inside radius
TRANSMISSION	CVT automatic	DRY WEIGHT	824 Lbs.	SPECIAL FEATURES	3pt Lap/Shoulder Belts for Driver and Passenger, 12V Auxiliary Outlet for Accessories, 35W Headlights, Polyurethane Powder Paint, 2” Rear Receiver Hitch, Dump Bed, Bench Seating, Welded steel frame
DIFFERENTIAL	Open	SHIPPING WEIGHT	962 Lbs.
TRANSAXLE	Gear drive Dana-Spicer oil-filled transaxle	BED MATERIAL	Structural foam – “Poly Bed” with stake pockets
	Gear drive Dana-Spicer oil-filled transaxle		Structural foam – “Poly Bed” with stake pockets

Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.



* In late 2013 going forward the engine on the LM300 was replaced with a larger 277cc Kohler Command Pro CH395 (unit is now known as LM300A). ** 5 year engine warranty from Subaru or 3 year engine warranty from Kohler
