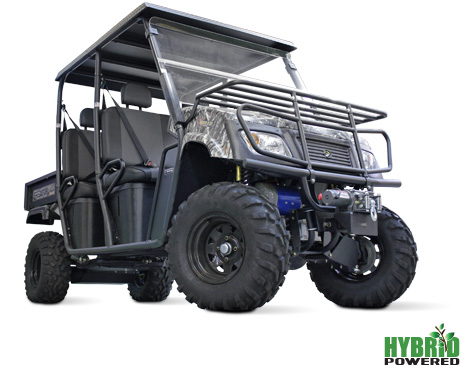

American SportWorks LANDmaster LMC4P 2WD/4WD Hybrid Gas/Electric Powered Crew Cab UTV

Landmaster LMC4P from American SportWorks

A hunter's dream utility vehicle! Silent 2WD or full power 4WD, fully loaded with accessories!

Powered by 653cc gasoline engine and 24KW/48V electric motor

Gasoline engine operation powers vehicle for longer range or when you need more power

Electric motor operation powers vehicle for short distances when you want to be totally silent you can run exclusively on the batteries

4-wheel drive operation powers vehicle with both the electric motor and the gasoline engine simultaneously

4-wheel brakes: disc front and drum rear with regenerative braking

1200 lb. towing capacity

The most popular hunting accessories come standard

Locking differential to help get you through rough terrain

Total range of up to 130 miles**
(see estimate chart)

* Manufacturer's Suggested Retail Price (MSRP) does not include freight, taxes, or Dealer prep charges.

MSRP is subject to change without notice, please confirm with your local authorized LANDmaster dealership.

Reference to estimated monthly payment is based on financing of 8.9% for 60 months on installment loans. Monthly payment estimate is based on MSRP and estimated taxes and fees. Financing is subject to credit approval.

Optional accessories not shown are also available. Please contact your local authorized LANDmaster dealership for more information.

** Not all LANDmaster dealers have the ability to provide installment financing. Please contact your local authorized LANDmaster dealership for more information.

SPECIFICATIONS

MOTOR TYPE	ELECTRIC:48V DC GAS:4-stroke OHV V-twin	DIFFERENTIAL	Manual lock differential	SHIPPING WEIGHT	1787 lbs. (ships uncrated)
	ELECTRIC:48V DC GAS:4-stroke OHV V-twin	TRANSAXLE	H-12 Shafer/DANA gearbox (front) Gear drive Shafer/Dana-Spicer oil-filled transaxle	BED MATERIAL	Steel (no flipseat)
MOTOR SIZE	24kw at 46 ft. lbs of torque with 500 amp Curtis controller / 653cc Subaru			BED DIMENSIONS	34” L x 42” W x 10” D
				BED CAPACITY	9.25 cu.ft. / 400 lbs.
		DRIVE	2 Wheel drive / switch engaged on demand, 4-wheel drive	REAR FLIP SEAT	Not an available option
SPEED	Up to 22 MPH**				Not an available option
FUEL CONSUMPTION	Up to 18 MPG**			TOWING CAPACITY	1200 Lbs.
RANGE	ELECTRIC:up to 10 miles GAS:up to 90 miles	FRONT SUSPENSION	Double A-arm front with up to 3” travel, coil over gas reservoir shock absorbers	VEHICLE CAPACITY	1500 Lbs.
	ELECTRIC:up to 10 miles GAS:up to 90 miles			PARKING BRAKE	Hand Operated
STARTING	Keyed on/off switch(48V motor) 12V keyed ignition (gas engine)			HEADRESTS	Yes
		REAR SUSPENSION	Articulated rear swing arm, quad adjustable shocks with up to 3” travel	UNDER SEAT STORAGE	Yes
BATTERY	Four 12V U.S. Battery 155 amp hour deep cycle batteries 12V Starting - 360 cca			WARRANTY	Engine: 5 year engine by SUBARU 1 Year limited by ASW

		BRAKE SYSTEM	Hydraulic Disc Front, Hydraulic Drum Rear
ON-BOARD CHARGER	Delta Q, 48V, sealed, solid state, UL and CE compliant		Hydraulic Disc Front, Hydraulic Drum Rear	SPECIAL FEATURES	3pt lap/shoulder belts for driver and passenger, 35W headlights, polyurethane powdered coat paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame, 12V auxiliary outlet for accessories
	Delta Q, 48V, sealed, solid state, UL and CE compliant	FRONT/REAR TIRES	25 x 11 - 12 Heavy Duty 6 ply Rated
SPARK PLUG	NGK BPR4ES		25 x 11 - 12 Heavy Duty 6 ply Rated
FUEL CAPACITY	5.0 gallons	DIMENSIONS	142” L x 48” W x 75” D
ALTERNATOR	Converter 20 amps / 30 amp	WHEEL BASE	104"
LOW OIL SHUTDOWN	Oil pressure warning light	TURNING RADIUS	19.5’ inside radius
TRANSMISSION	Direct drive / CVT automatic	DRY WEIGHT	1787 lbs.
				INCLUDED ACCESSORIES	Hard top, windshield, CV guard, skid plate, 2500 Lb. capacity front winch, 2" front receiver, front hood rack

Specifications are subject to change without notice.
** Estimates. Actual top speeds, fuel consumptions and vehicle ranges may vary due to driving conditions, terrain, climate and other extenuating circumstances.
